Brand：SEYOND
Model :

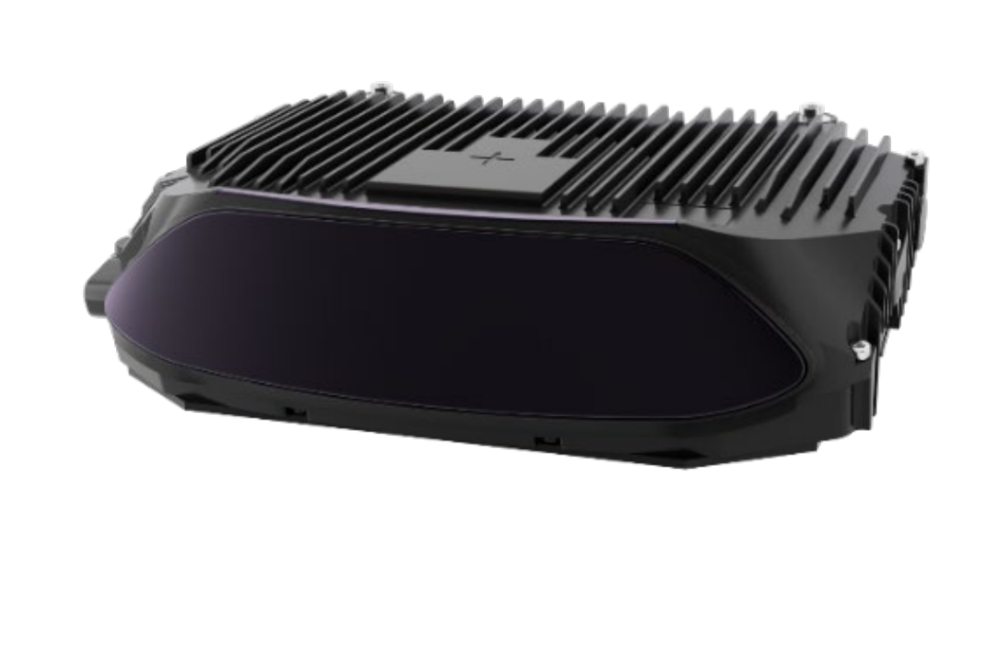

Falcon K1 Lite
The Falcon-K1 lidar is applied in V2X, smart cities, intelligent highways, etc., with a detection range of 500 meters and a resolution of 0.09°×0.15°.
Falcon K1 Lite achieves effective perception distance for small objects. Its flexible and adjustable configuration can enhance resolution in target areas to enable better detection and more detailed data.
Falcon K1 Lite achieves effective perception distance for small objects. Its flexible and adjustable configuration can enhance resolution in target areas to enable better detection and more detailed data.
|
Range (Maximum) |
500 m |
|
Range (Minimum) |
1.5 m |
|
Detection Range (10% Lambertian reflectivity @ 10 Hz) |
200 m@100 klx sunlight, POD>90% |
|
Detection Range Accuracy |
± 5 cm for Lambertian targets ± 10 cm for retroreflectors |
|
Detection Range Precision (10% Lambertian reflectivity) |
2 cm (50 m@1sigma) |
|
Detection Range Resolution |
0.5 cm |
|
Vertical Scanning Lines |
1120 lines/sec |
|
FOV in non-ROI |
HFOV: 120°, VFOV: 25.6° |
|
FOV in ROI |
120°×9.6° |
|
Angular Resolution in non-ROI |
0.18°×0.4° |
|
Angular Resolution in ROI |
0.09°×0.15° |
|
Angular Accuracy |
± 0.1° |
|
Frame Rate |
10 FPS (configurable: 5 to 20 FPS) |
|
# of Returns |
Up to 2 returns |
|
Laser Wavelength |
1550 nm |
• 500m detection range, wide field of view, and high imaging resolution.
• Flexible adjustment ensures point cloud height at any installation position.
• 1550nm laser wavelength, eye-safe, with interference radiation and sunlight protection.
• Designed for ITS (Intelligent Transportation Systems) scenarios, featuring rugged construction for extended service life.
• Flexible adjustment ensures point cloud height at any installation position.
• 1550nm laser wavelength, eye-safe, with interference radiation and sunlight protection.
• Designed for ITS (Intelligent Transportation Systems) scenarios, featuring rugged construction for extended service life.
