Kelvinion Monitor Temperature Monitor

Brand：MultiFields

Model : Kelvinion Monitor

Q'ty :

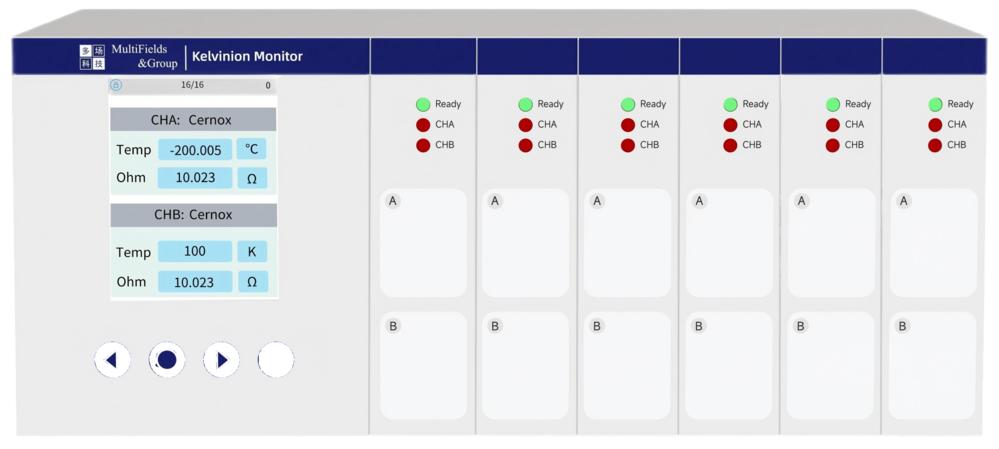

For the multi-channel temperature sensing requirements in large cryogenic setups, MultiFields introduces the Kelvinion Monitor cryogenic monitor. It allows users to select the number of measurement channels, each independent and compatible with RTD, Diode, and thermocouple thermometers. Each temperature measurement channel features a sampling rate of 10 SPS, with inter-channel synchronous sampling capability—synchronization time is better than 100 μs. The master-slave design enables easy expansion to up to 32 temperature measurement channels and supports installation in standard racks.

01. Input	Input Channels	Configurable from 2 to 32 independent channels
	Isolation	Galvanic isolation between sensor inputs and control circuit
	ADC Resolution	24-bit
	Update Rate	10 samples per second
	User Curves	>1000 curves (max 400 points/curve)
	Filter	Kalman Filter
	Synchronization Time	Inter-channel sampling synchronization <100 μs
02. Input Parameters	Sensor Types	Diode / Resistance / Thermocouple
	Measurement Method	4-wire measurement
	Excitation	Constant-amplitude, alternating-direction current excitation (for resistance sensors)
	Supported Sensors	- Diode: Si, GaAlAs - Resistance: 100Ω & 1000Ω Pt, Ge, Carbon-Glass, Cernox®, RO, Rox™ - Thermocouple: J, K, E, T, S
	NTC Input Range	0~10Ω, 0~30Ω, 0~100Ω, 0~300Ω, 0~1kΩ, 0~3kΩ, 0~10kΩ, 0~30kΩ, 0~100kΩ
	NTC Excitation Current	1mA, 0.3mA, 0.1mA, 30μA, 10μA, 3μA, 1μA, 0.3μA, 0.1μA
	NTC Measurement Resolution	0.15mΩ, 0.45mΩ, 1.5mΩ, 4.5mΩ, 15mΩ + 0.02‰ of reading, 45mΩ + 0.02‰ of reading, 150mΩ + 0.02‰ of reading, 450mΩ + 0.02‰ of reading, 1.5Ω + 0.05‰ of reading
	NTC Accuracy	8mΩ, 20mΩ, 50mΩ, 120mΩ, 0.5Ω + 0.02‰ of reading, 1.2Ω + 0.02‰ of reading, 5Ω + 0.02‰ of reading, 15Ω + 0.02‰ of reading, 15Ω + 0.02‰ of reading

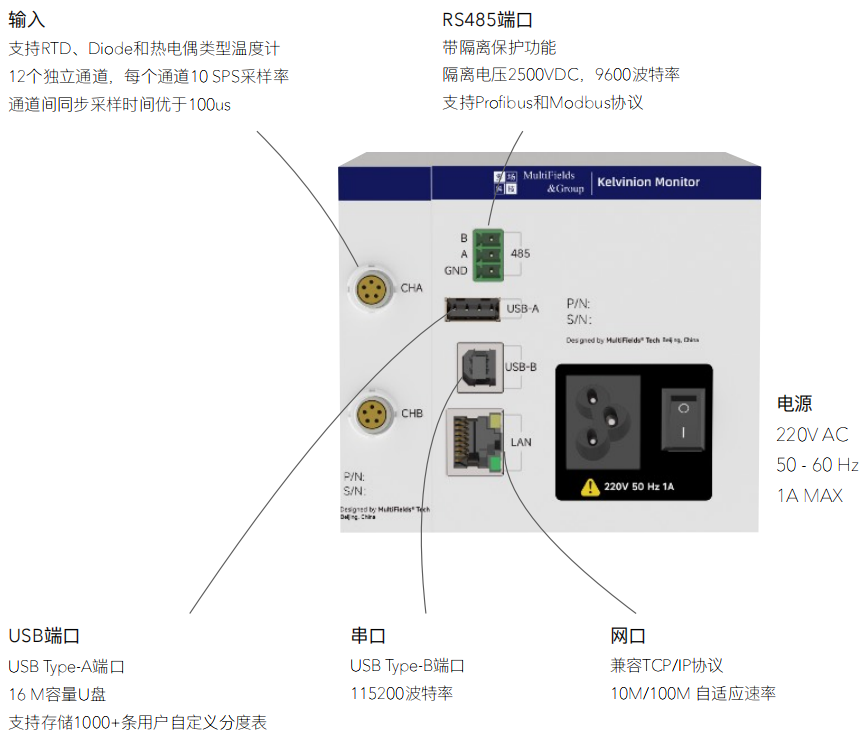

03. General	Communication - USB	USB-TypeB port, baud rate 115200
	Communication - LAN	TCP/IP protocol, 10/100M auto-negotiation, configurable IP address and port
	Communication - RS-485	Isolated protection, 2500VDC isolation voltage, 9600 baud rate, supports Profibus & Modbus protocols
	Display	2.4" LCD, resolution 320×240
	Dimensions - Main Unit	79(W)×88.9(H)×135(L) mm
	Dimensions - Slave Unit	22.5(W)×88.9(H)×135(L) mm

Temperature measurement can be as low as 300 mK, with a measurement resolution of up to 0.1 mK (24 - bit ADC);
The standard configuration has 12 temperature measurement channels, and supports the optional configuration of 2 - 32 temperature measurement channels;
Each temperature measurement channel is independent of each other, with a sampling rate of 10 SPS;
Inter - channel synchronous sampling function is supported, and the synchronization time is better than 100 μs;
Automatically adjust the thermometer excitation current to achieve the highest measurement accuracy and the lowest heat generation;
Supports more than 1000 user - defined 分度表 (calibration tables);
Supports USB (serial port), network port, and RS485 communication methods.
