Brand：ATO
Model :

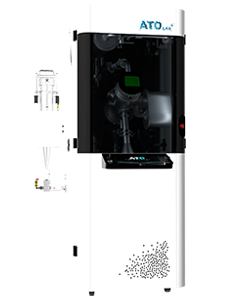

ATO Lab Plus
The ATO Lab Plus is a state-of-the-art ultrasonic metal powder atomizer, perfect for producing high-quality spherical powders for Additive Manufacturing and powder metallurgy. Its compact design, innovative technology, and customizable modules ensure efficient and cost-effective powder production.
| Item | Description |
|---|---|
| Purpose | Metal powder production |
| Technology | Ultrasonic atomization |
| Melting method | Tungsten inert gas (TIG) arc / induction melting (optional) |
| Ultrasonic generator type | Half-wave nano-alloy ultrasonic generator (patented) |
| Inert gas purging method | Vacuum pump |
| Cooling method | Fluid cooling / water cooling |
| Processable materials | Non-reactive and reactive alloys (e.g., Ti, Al, Zr-based alloys, intermetallic compounds, and refractory metals) |
| Powder quality | High flowability, spherical particles, narrow PSD, low oxygen content |
| (Particle size distribution) | 20-120 μm (depending on ultrasonic frequency) |
| Powder collection system | Cyclone collection system |
| Inert gas preparation time | Less than 15 minutes |
| Input materials |
Standard wire material, rod material (optional) Wire (standard): 0.8-2.2 mm (diameter range) Rod (optional): Single rod feeding system: single rod with length < 120 mm and diameter < 10 mm Multi-rod feeding system: total length < 120 mm, diameter < 10 mm, up to 10 rods |
| Certification | CE |
✅ Suitable for conventional laboratories or production facilities, with no special additional infrastructure required;
✅ Fully automated powder production and integrated cabinet design, no additional operation needed;
✅ Capable of continuous powder production for long periods, with a maximum duration of 30-50 hours;
✅ Applicable to a variety of metal materials, including iron-based, titanium-based, tungsten-based, and precious metals;
✅ Unique ultrasonic technology for half-wave nano-alloys - patent pending;
✅ Oxygen content of the prepared powder is <10 ppm;
✅ Ultrasonic frequency: 35kHz (upgradeable to 52kHz);
✅ Easy and quick cleaning, enabling rapid switch to the next material.
✅ The powder features a narrow PSD (Particle Size Distribution) of 20μm-120μm, with nearly perfect spherical shape and high flowability;
✅ Fully automated powder production and integrated cabinet design, no additional operation needed;
✅ Capable of continuous powder production for long periods, with a maximum duration of 30-50 hours;
✅ Applicable to a variety of metal materials, including iron-based, titanium-based, tungsten-based, and precious metals;
✅ Unique ultrasonic technology for half-wave nano-alloys - patent pending;
✅ Oxygen content of the prepared powder is <10 ppm;
✅ Ultrasonic frequency: 35kHz (upgradeable to 52kHz);
✅ Easy and quick cleaning, enabling rapid switch to the next material.
✅ The powder features a narrow PSD (Particle Size Distribution) of 20μm-120μm, with nearly perfect spherical shape and high flowability;
✅ Fast startup time, with powder production starting in as little as 5 minutes; material changeover and restart time is 5-10 minutes;
