Brand：ARTRAY
Model :

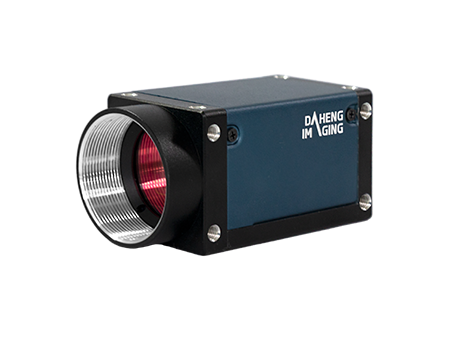

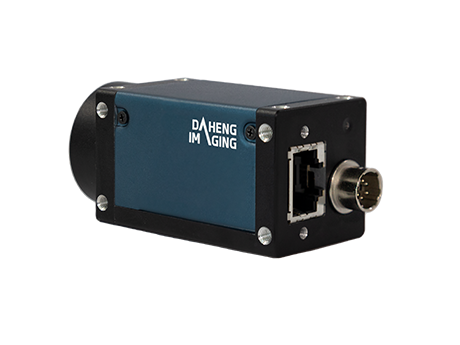

MER3-138-136G3M-P-SWIR F02
| Model | MER3-138-136G3M-P-SWIR F02 |
|---|---|
| Brand | Daheng Imaging |
| Sensor Material | InGaAs |
| Resolution | 1280×1024 |
| Shutter Mode | Global shutter |
| Pixel Size | 5μm |
| Max Line Rate/Frame Rate | 72.4fps |
| Spectral Response | 400 nm ~ 1700 nm |
| Data Interface | 2.5GigE |
| Lens Mount | C |
| Cooling Method | Non-cooled |
| Power Requirement | 12 ~ 24 VDC or PoE |
| Mechanical Dimensions (W×H×L) | 29 mm × 29 mm × 50.6 mm |
| Operating Temperature | 0°C ~ +50°C |
| Weight | 68 g |
