Brand：ARTRAY
Model :

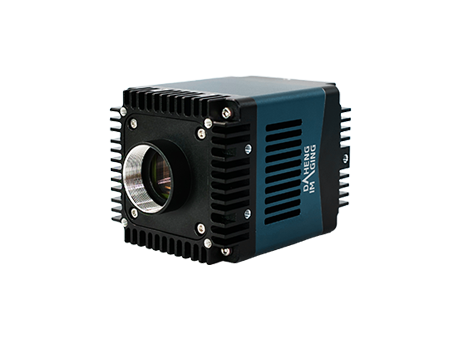

MARS-321-176GTM-TN-SWIR F02
The MARS-321-176GTM-TN-SWIR F02 is a SWIR 10GigE camera launched by Daheng Imaging, equipped with a Sony IMX993 high-sensitivity sensor using SenSWIR technology. It captures wide-band image information from 400nm to 1700nm (visible light and short-wave infrared), replacing traditional "visible light camera + SWIR camera" setups. Its wide spectral response is suitable for multispectral applications. With a 10GigE interface supporting up to 10Gbit/s data transfer and high frame rate, it is ideal for semiconductor inspection— a high-reliability, cost-effective industrial digital camera.
| Sensor Material | InGaAs |
|---|---|
| Resolution | 2080×1544 |
| Shutter Mode | Global shutter |
| Pixel Size | 3.45μm |
| Max Line Rate/Frame Rate | 176fps |
| Spectral Response Range | 400 nm ~ 1700 nm |
| Data Interface | 10GigE |
| Lens Mount | C |
| Cooling Method | TEC (Thermoelectric Cooling) |
| Power Requirement | 24 VDC |
| Mechanical Dimensions | 62 mm × 62 mm × 80.5 mm |
| Operating Temperature | 0°C ~ +45°C |
| Weight | 495 g |
