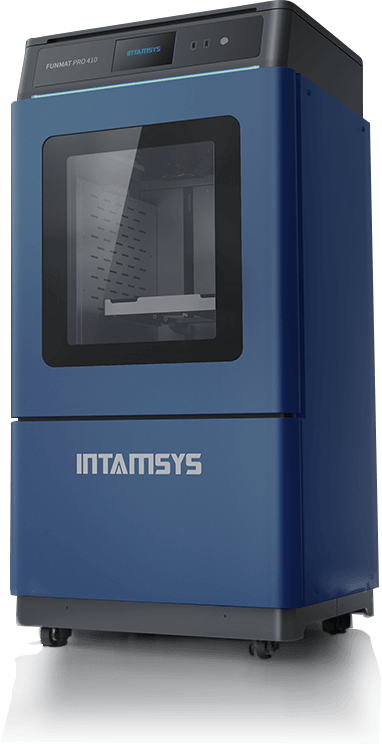

Industrial-Grade 3D Printer - FUNMAT PRO 410

Brand：INTAMSYS
Model : FUNMAT PRO 410
INTAMSYS FUNMAT PRO 410 is industrial-grade intelligent dual-nozzle high-temperature 3D printer, with a printing size of up to 305×305×406mm, capable of handling various complex structures.

The dual nozzles can reach a temperature of 500°C, the platform temperature up to 160°C, and the chamber temperature up to 90°C. This specification enables the FUNMAT PRO 410 to print not only high-performance materials such as PEEK, PEEK-CF, PEKK, and PPS but also engineering plastics like PA, PC, ABS, and PETG.

Equipped with built-in linear guides and high-performance directional drives, the FUNMAT PRO 410 can achieve high-speed and high-precision 3D printing.
Technical Parameters Details
Model FUNMAT PRO 410
Molding Method Fused Filament Fabrication (FFF)
External Dimensions 728×684×1480mm
Build Volume 305×305×406mm
Printing Platform PI Heating Film + Microcrystalline Glass
Leveling Method Auto - Leveling
Layer Thickness 0.05 - 0.5mm
Movement Speed XY: Max. 300mm/s
Printing Nozzles Smart Dual Nozzles
Nozzle Temperature Max. 500°C
Platform Temperature Max. 160°C
Chamber Temperature Max. 90°C
Material Chamber Temperature Max. 70°C
Supported Formats STL/OBJ
Filament Diameter 1.75mm
Positioning Accuracy XY: 16μm; Z: 1.6μm
Intelligent Design Nozzle Clogging Alarm/Material Shortage Alarm/Power - Off Resume/Cooling System/Self - Cleaning Nozzles/Over - Temperature Protection
Safety Certifications FCC/CE
Data Connection WIFI/Internet/USB
Printing Materials PEEK/PEEK - CF/PEEK - GF/PEKK/ULTEM™ (PEI)*/PC/PC Alloys/PA/PA - CF/ASA/ABS/
HIPS/PETG/PLA/PVA/Carbon Fiber - Filled/Glass Fiber - Filled/ESD - Safe, etc.
  1. Smart Multi-Material Industrial-Grade 3D Printing Equipment；
  2. Intelligent Design: Smart Dual-Nozzle Printing Solution with Automatic Leveling and Nozzle Clogging Alarm Functions；
  3. Advanced Thermal Design: Equipped with a Constant-Temperature Chamber, Constant-Temperature Material Hopper, and Liquid-Cooling System, Enabling Printing with a High-Temperature Nozzle up to 500°C；
  4. Industrial-Grade Components for High-Precision and High-Quality Printing；
