Brand：EL.EN
Model :

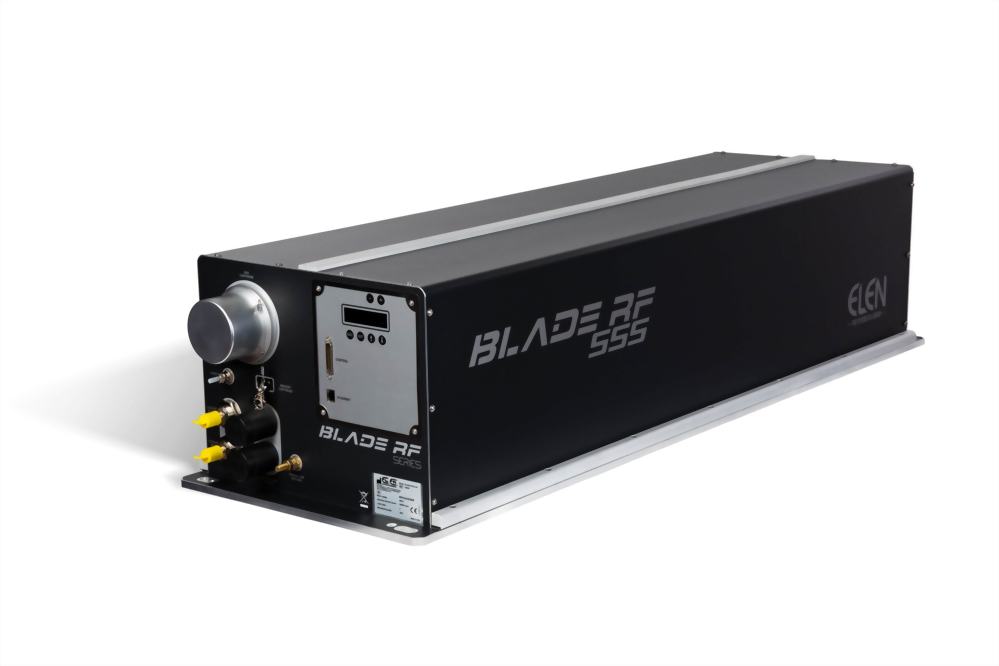

Blade RF 555
RF 555 Self-Refilling ensures high reliability in the field to satisfy the most demanding MTBF requirements.
Thanks to the Self Refilling technology, it allows you to independently replace the gas cartridge and thus maintain stable laser parameters and a guaranteed 550W average nominal power over time.
| Parameter | Value / Specification |
|---|---|
| Rated power (W) | 550 |
| Effective peak power (W) | 1650 |
| Power stability (long term) | ±5% |
| Wavelength (μm) | 10.6 ± 0.4 |
| Polarization | Linear (perpendicular to base) |
| Beam diameter (1/e² at exit) (mm) | 11.5 ± 0.5 |
| Beam divergence (1/e² full angle) (mrad) | 0.9 ± 0.1 |
| Maximum pulse frequency (kHz) | 100 |
| Pulse width range (μs) | 2 ÷ 150 |
| Maximum duty cycle | 60% |
| Mode quality (M²) | < 1.2 |
| Beam ellipticity | 1.2 : 1 |
| Optical pulse rise/fall time (μs) | < 50 |
| Typical gas mix consumption (NL/year) | 24 (2 cartridges per year) |
| Operating ambient temperature range (°C) | 5 ÷ 35 |
| Storage temperature range (°C) | 5 ÷ 50 |
| Maximum humidity | Non-condensing at inlet water temperature |
| Parameter | Value / Specification |
|---|---|
| Heat load (W) | 6800 |
| Coolant temperature (°C) | 23 ± 1 |
| Water cooling input pressure (bar) | ≤ 5 |
| Water cooling flow rate (L/min) | 21 ÷ 23 |
| Parameter | Value / Specification |
|---|---|
| Laser dimensions (L×W×H) (mm) | 1327 × 420 × 309 |
| RF power supply dimensions | Integrated |
| Safety shutter | Optional |
| Laser weight (kg) | 110 |
| Parameter | Value / Specification |
|---|---|
| Input voltage (Vᴰᶜ) | 48 ± 0.5 |
| Max current (A) | 140 |
| Peak current (A) | 180 for 3 ms max |
Rated power (W): 550;
Wavelength (μm): 10.6 ± 0.4;
Stable and Robust thanks to Self Refilling technology - countless installations around the world prove its reliability.
