Brand：EL.EN
Model :

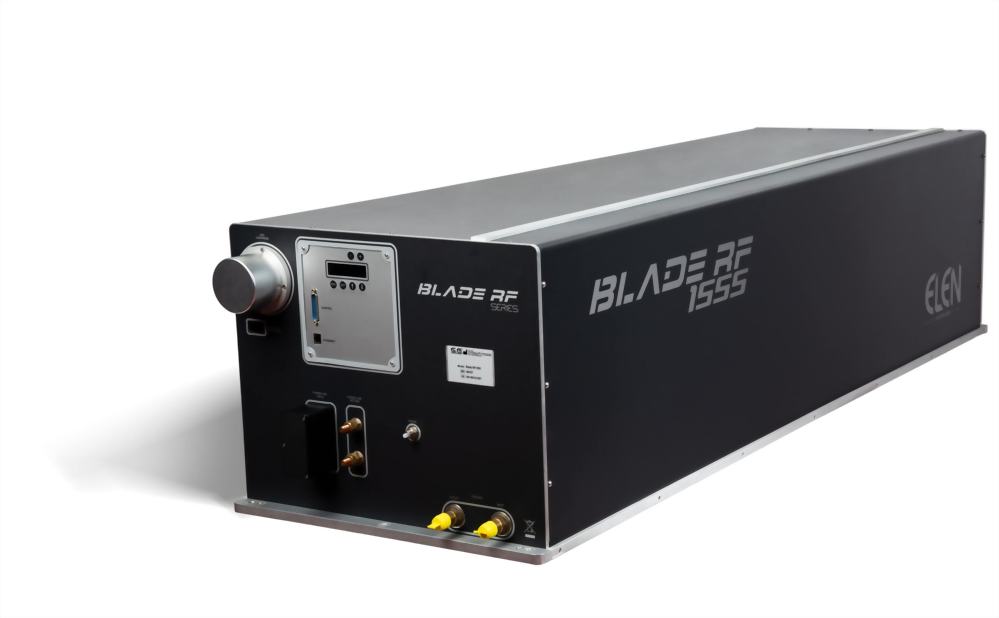

Blade RF 1555
The RF 1555 has a nominal power of 1500W, making it the most powerful laser source in our Self Refilling series.
It is the ideal solution for all laser system manufacturers looking for a powerful and reliable laser source.
The compact design of the RF module allows easy on-site servicing.
| Parameter | Value / Specification |
|---|---|
| Rated power (W) | 1500 |
| Effective peak power (W) | 2400 |
| Power stability (long term) | ±5% |
| Wavelength (μm) | 10.6 ± 0.4 |
| Polarization | Linear (perpendicular to base) |
| Beam diameter (1/e² at exit) (mm) | 9.0 ± 0.5 |
| Beam divergence (1/e² full angle) (mrad) | 2.0 ± 0.1 |
| Maximum pulse frequency (kHz) | 100 |
| Pulse width range (μs) | 2 ÷ 150 |
| Maximum duty cycle | 60% |
| Mode quality (M²) | < 1.2 |
| Beam ellipticity | 1.2 : 1 |
| Optical pulse rise/fall time (μs) | < 50 |
| Typical gas mix consumption (NL/year) | 65 (approx. 1 cartridge per year) |
| Operating ambient temperature range (°C) | 5 ÷ 35 |
| Storage temperature range (°C) | 5 ÷ 50 |
| Maximum humidity | Non-condensing at inlet water temperature |
| Parameter | Value / Specification |
|---|---|
| Heat load (W) | 20000 |
| Coolant temperature (°C) | 23 ± 1 |
| Water cooling input pressure (bar) | < 6 |
| Water cooling flow rate (L/min) | ≥ 45 |
| Parameter | Value / Specification |
|---|---|
| Laser dimensions (L×W×H) (mm) | 1820 × 565 × 446 |
| RF power supply dimensions | Integrated |
| Safety shutter | Integrated |
| Laser weight (kg) | 300 |
| Parameter | Value / Specification |
|---|---|
| Input voltage (Vᴰᶜ) | 48 ± 0.5 |
| Max current (A) | 400 |
| Peak current (A) | 520 for 3 ms max |
