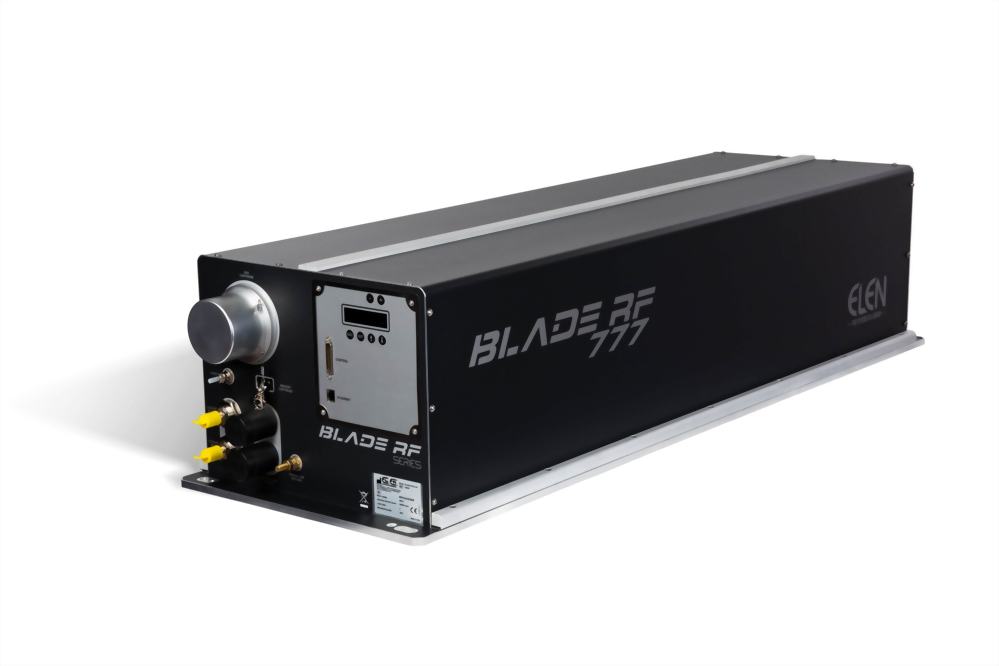

RF 777 Self-Refilling ensures high reliability in the field. 750W average nominal power is guaranteed over time by the Self Refilling technology, which allows for independent replacement of the gas cartridge.

Parameter	Value / Specification
Rated power (W)	750
Effective peak power (W)	1750
Power stability (long term)	±5%
Wavelength (μm)	10.6 ± 0.4
Polarization	Linear (perpendicular to base)
Beam diameter (1/e² at exit) (mm)	11.5 ± 0.5
Beam divergence (1/e² full angle) (mrad)	0.9 ± 0.1
Maximum pulse frequency (kHz)	100
Pulse width range (μs)	2 ÷ 150
Maximum duty cycle	70%
Mode quality (M²)	< 1.2
Beam ellipticity	1.2 : 1
Optical pulse rise/fall time (μs)	< 50
Typical gas mix consumption (NL/year)	24 (2 cartridges per year)
Operating ambient temperature range (°C)	5 ÷ 35
Storage temperature range (°C)	5 ÷ 50
Maximum humidity	Non-condensing at inlet water temperature

Parameter	Value / Specification
Heat load (W)	9000
Coolant temperature (°C)	23 ± 1
Water cooling input pressure (bar)	≤ 5
Water cooling flow rate (L/min)	21 ÷ 23

Parameter	Value / Specification
Laser dimensions (L×W×H) (mm)	1327 × 420 × 309
RF power supply dimensions	Integrated
Safety shutter	Optional
Laser weight (kg)	110

Parameter	Value / Specification
Input voltage (Vᴰᶜ)	48 ± 0.5
Max current (A)	180
Peak current (A)	230 for 3 ms max

Rated power (W): 750;
Wavelength (μm): 10.6 ± 0.4;
High reliability and stability thanks to Self Refilling technology with 750W average powe.
