Brand：EL.EN
Model :

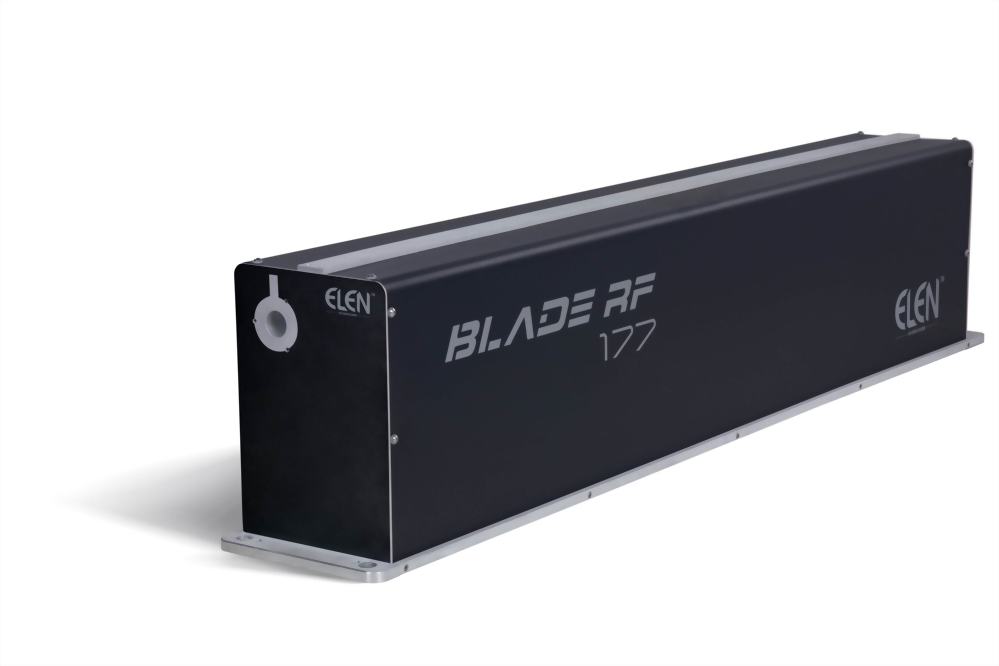

Blade RF 177
The RF 177 has a nominal average power of 150W and reaches a peak power of 600W in pulsed mode. It is the ideal model for all processing applications on plastics, plastic films and paper. The RF 177G version, with a wavelength of 9.3μm, is dedicated to the LCD sector.
| Parameter | Value/Specification |
|---|---|
| Rated Power (W) | 150 |
| Effective Peak Power (W) | 600 |
| Power Stability (Long-term) | ±5% |
| Wavelength (μm) | 10.6 ± 0.4 |
| Polarization | Linear (perpendicular to base) |
| Beam Diameter (1/e² at the exit) (mm) | 6.0 ± 0.5 |
| Beam Divergence (1/e² full angle) (mrad) | 3.0 ± 0.3 |
| Maximum Pulse Frequency (kHz) | 100 |
| Pulse Width Range (μs) | 2 – 1000 |
| Maximum Duty Cycle | 50% |
| Mode Quality (M²) | < 1.15 |
| Beam Ellipticity | 1.15 : 1 |
| Optical Pulse Rise/Fall Time (μs) | < 50 |
| Typical Gas Mix Consumption (NL/year) | NA |
| Operating Ambient Temperature Range (°C) | 5 – 35 |
| Storage Temperature Range (°C) | 5 – 50 |
| Maximum Humidity | Non condensing at inlet water temperature |
| Heat Load (W) | 3000 |
| Coolant Temperature (°C) | 23 ± 1 |
| Water Cooling Inlet Pressure (bar) | 4 |
| Water Cooling Flow Rate (L/min) | 7 ± 0.5 |
Rated Power (W): 150W；
avelength (μm): 10.6 ± 0.4；
Low Power RF Sealed Off Pulsed Laser with high peak power and a wide range of wavelengths.
