Brand：EL.EN
Model :

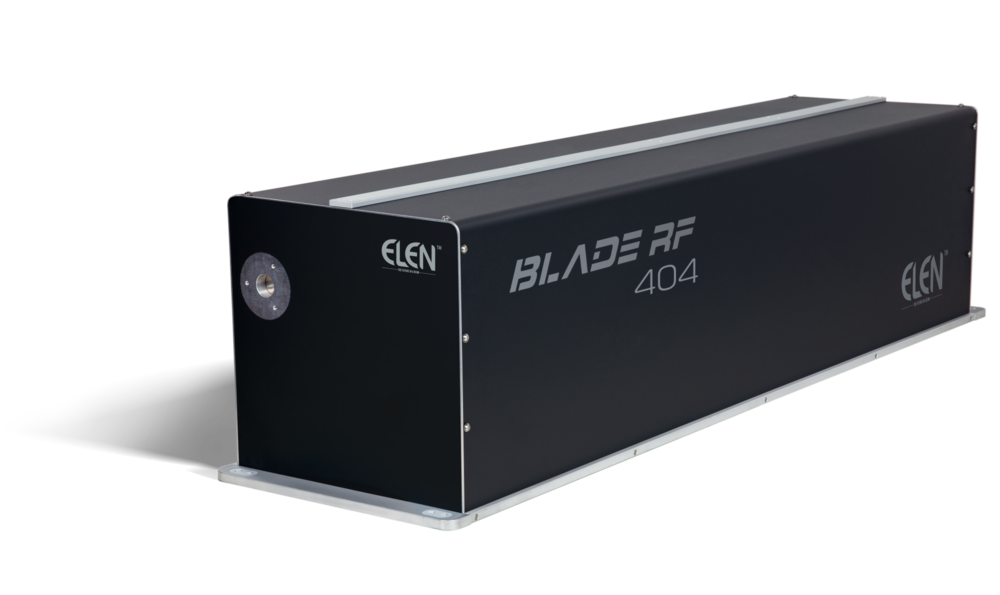

Blade RF 404
The RF 404 sealed-off technology can guarantee nominal power values above 400W for years, even under extreme environmental and operating conditions.
| Parameter | Value / Specification |
|---|---|
| Rated power (W) | 400 |
| Effective peak power (W) | >1200 |
| Power stability (long term) | ±5% |
| Wavelength (μm) | 10.6 ± 0.4 |
| Polarization | Linear (perpendicular to base) |
| Beam diameter (1/e² at exit) (mm) | 8.0 ± 0.5 |
| Beam divergence (1/e² full angle) (mrad) | ≤3.0 |
| Maximum pulse frequency (kHz) | 100 |
| Pulse width range (μs) | 2 ÷ 150 |
| Maximum duty cycle | 60% |
| Mode quality (M²) | < 1.2 |
| Beam ellipticity | <1.2 : 1 |
| Optical pulse rise/fall time (μs) | ≤60 / ≤100 |
| Typical gas mix consumption (NL/year) | NA |
| Operating ambient temperature range (°C) | 5 ÷ 35 |
| Storage temperature range (°C) | 5 ÷ 50 |
| Maximum humidity | Non-condensing at inlet water temperature |
| Parameter | Value / Specification |
|---|---|
| Heat load (W) | 5500 |
| Coolant temperature (°C) | 23 ± 0.5 |
| Water cooling input pressure (bar) | 4.5 |
| Water cooling flow rate (L/min) | 15 |
| Parameter | Value / Specification |
|---|---|
| Laser dimensions (L×W×H) (mm) | 1210 × 320 × 305 |
| RF power supply dimensions | Integrated |
| Safety shutter | Optional |
| Laser weight (kg) | 65 |
| RF power supply weight (kg) | – |
| Parameter | Value / Specification |
|---|---|
| Input voltage (Vᴰᶜ) | 48 ± 1 |
| Max current (A) | 115 |
| Peak current (A) | ≤200 for 3 ms max |
