Brand：EL.EN
Model :

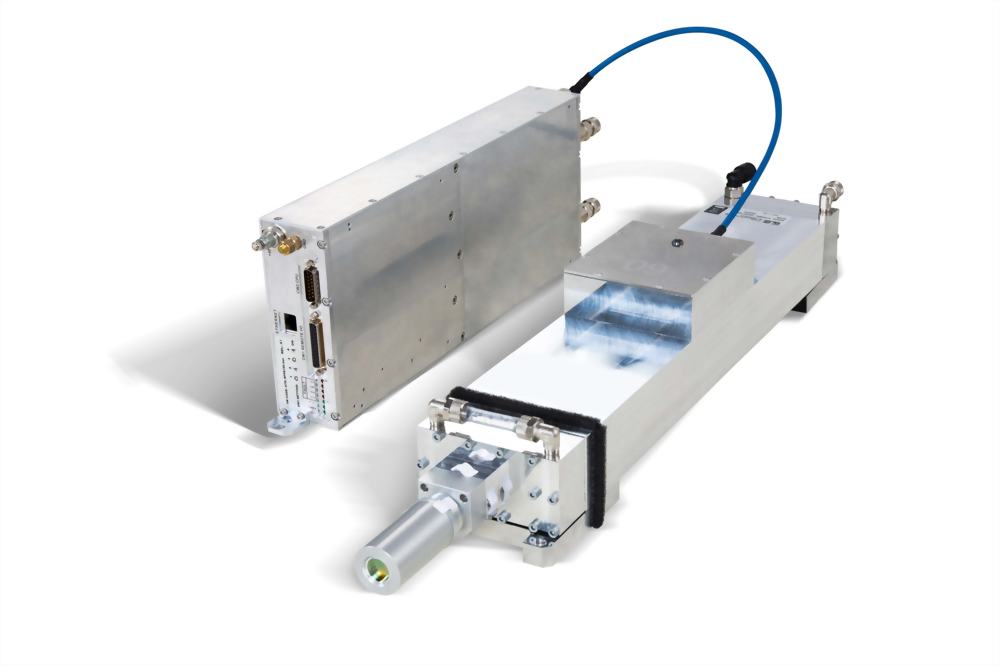

Blade RF 88
RF 88 is designed for low power laser applications. The sealed-off technology allows maintaining stable laser parameters over a long service life, guaranteeing high processing quality.
It is suitable for applications requiring extreme precision and quality. Compact size and easy to integrate into existing systems.
| Parameter | Value / Specification |
|---|---|
| Rated power (W) | 80 |
| Effective peak power (W) | 200 |
| Power stability (long term) | ±5% |
| Wavelength (μm) | 10.6 ± 0.4 |
| Polarization | Linear (parallel to base) |
| Beam diameter (1/e² at exit) (mm) | 9.4 ± 0.5 |
| Beam divergence (1/e² full angle) (mrad) | 3.0 ± 0.3 |
| Maximum pulse frequency (kHz) | 50 |
| Pulse width range (μs) | 2 ÷ 1000 |
| Maximum duty cycle | 60% |
| Mode quality (M²) | < 1.2 |
| Beam ellipticity | 1.2 : 1 |
| Optical pulse rise/fall time (μs) | < 50 |
| Typical gas mix consumption (NL/year) | NA |
| Operating ambient temperature range (°C) | 5 ÷ 35 |
| Storage temperature range (°C) | 5 ÷ 50 |
| Maximum humidity | Non-condensing at inlet water temperature |
| Parameter | Value / Specification |
|---|---|
| Heat load (W) | 1500 |
| Coolant temperature (°C) | 23 ± 1 |
| Water cooling input pressure (bar) | 4 |
| Water cooling flow rate (L/min) | 5 ± 0.5 |
| Parameter | Value / Specification |
|---|---|
| Laser dimensions (L×W×H) (mm) | 662 × 110 × 117 |
| RF power supply dimensions (L×W×H) (mm) | 457 × 57 × 164 |
| Safety shutter | NA |
| Laser weight (kg) | 9 |
| RF power supply weight (kg) | 3.8 |
| Parameter | Value / Specification |
|---|---|
| Input voltage (Vᴰᶜ) | 48 ± 1 |
| Max current (A) | 27 |
| Peak current (A) | 32 for 3 ms max |
Rated power (W): 80;
Wavelength (μm): 10.6 ± 0.4;
Low Power RF Sealed Off Pulsed Laser with optimal laser beam parameters.
